C# 윈폼차트 <= 라즈베리파이(MySql서버) <=DHT11온습도 센서

전체 소스코드

using MySql.Data.MySqlClient;
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace dht_Sensor
{
    public partial class Form1 : Form
    {
        private static string Tname = "tblSensorDHT11";
        private static string QueryLogin = "SERVER=192.168.0.155 ; DATABASE = mydb; UID = root ; PASSWORD = 1234;";
        private static string QueryTable = "SELECT * FROM " + Tname + " ORDER BY TIME DESC LIMIT ";
        private static string QueryTable12 = QueryTable + 300 ;
        private static string QueryTable2 = QueryTable + 1 ;

        private bool TimerStatus;
        public void RefreshOn()
        {
            TimerStatus = true;
            timer1.Start();
            button2.Text = "그래프 정지";
        }
        public void RefreshOff()
        {
            TimerStatus = false;
            timer1.Stop();
            button2.Text = "시작";

        }
        public void RefreshToggle()
        {
            if(false==TimerStatus)//타이머 꺼져있을 때
            {
                RefreshOn();
            }
            else
            {
                RefreshOff();
            }
        }
        public Form1()
        {
            InitializeComponent();
        }

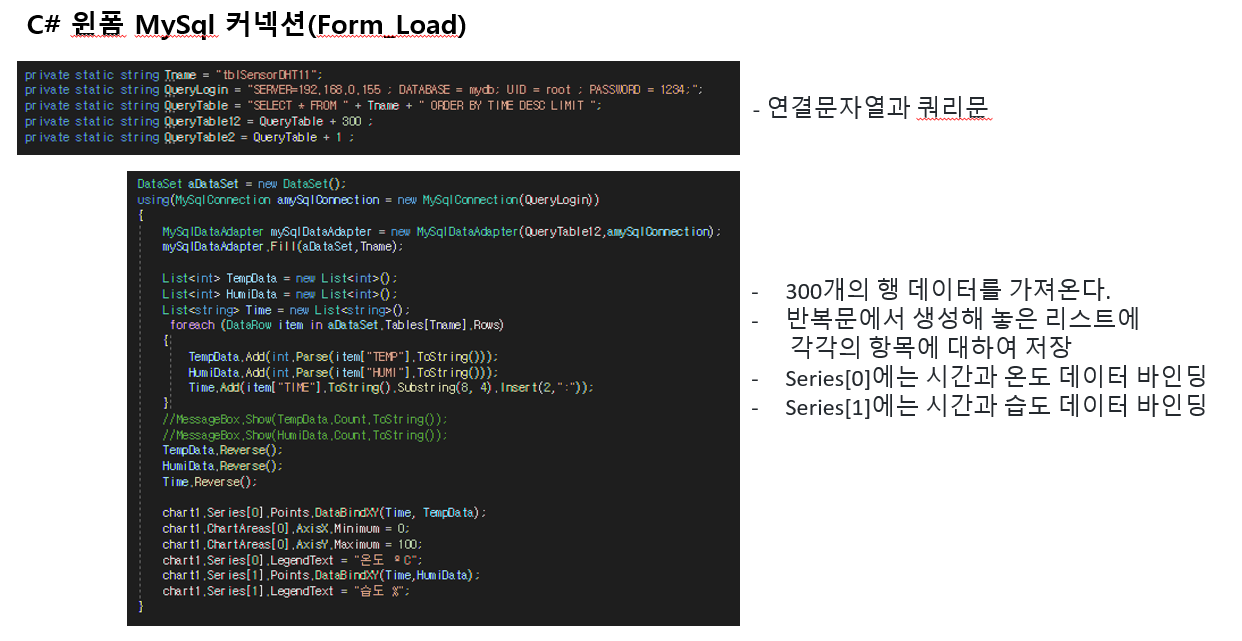

        private void Form1_Load(object sender, EventArgs e)
        {
            RefreshOn();

            DataSet aDataSet = new DataSet();
            using(MySqlConnection amySqlConnection = new MySqlConnection(QueryLogin))
            {
                MySqlDataAdapter mySqlDataAdapter = new MySqlDataAdapter(QueryTable12,amySqlConnection);
                mySqlDataAdapter.Fill(aDataSet,Tname);

                List<int> TempData = new List<int>();
                List<int> HumiData = new List<int>();
                List<string> Time = new List<string>();
                 foreach (DataRow item in aDataSet.Tables[Tname].Rows)
                {
                    TempData.Add(int.Parse(item["TEMP"].ToString()));
                    HumiData.Add(int.Parse(item["HUMI"].ToString()));
                    Time.Add(item["TIME"].ToString().Substring(8, 4).Insert(2,":"));
                }
                //MessageBox.Show(TempData.Count.ToString());
                //MessageBox.Show(HumiData.Count.ToString());
                TempData.Reverse();
                HumiData.Reverse();
                Time.Reverse();

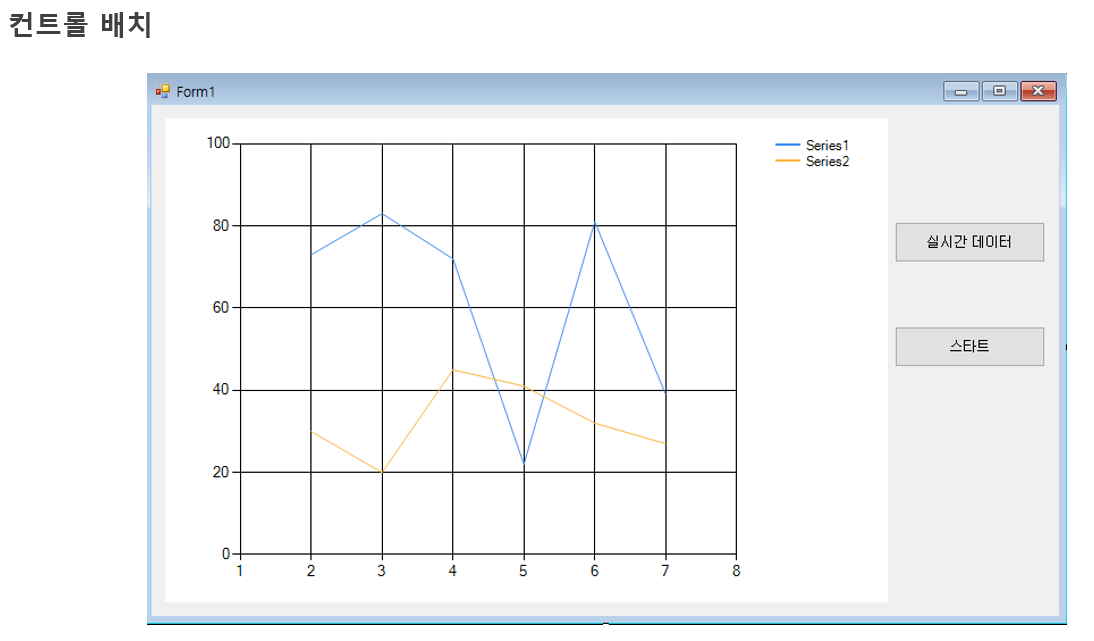

                chart1.Series[0].Points.DataBindXY(Time, TempData);
                chart1.ChartAreas[0].AxisX.Minimum = 0;
                chart1.ChartAreas[0].AxisY.Maximum = 100;
                chart1.Series[0].LegendText = "온도 ºC";
                chart1.Series[1].Points.DataBindXY(Time,HumiData);
                chart1.Series[1].LegendText = "습도 %";
            }



        }

        private void button1_Click(object sender, EventArgs e)
        {
            UpdateChart();

        }

        private void timer1_Tick(object sender, EventArgs e)
        {
            UpdateChart();
        }

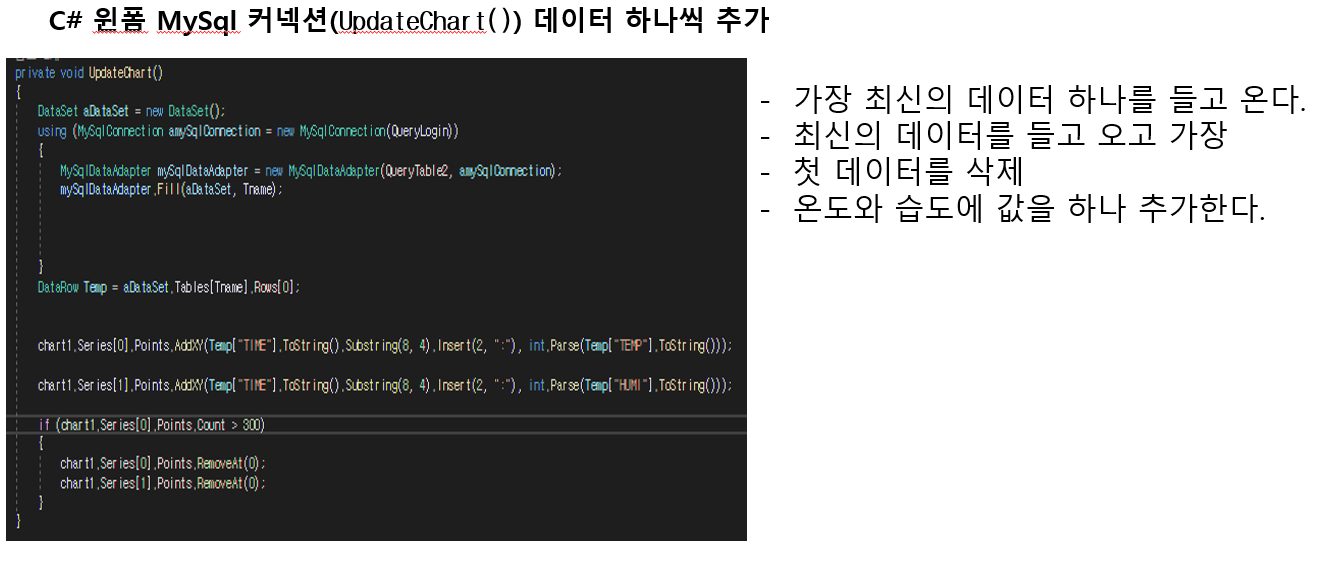

        private void UpdateChart()
        {
            DataSet aDataSet = new DataSet();
            using (MySqlConnection amySqlConnection = new MySqlConnection(QueryLogin))
            {
                MySqlDataAdapter mySqlDataAdapter = new MySqlDataAdapter(QueryTable2, amySqlConnection);
                mySqlDataAdapter.Fill(aDataSet, Tname);



            }
            DataRow Temp = aDataSet.Tables[Tname].Rows[0];


            chart1.Series[0].Points.AddXY(Temp["TIME"].ToString().Substring(8, 4).Insert(2, ":"), int.Parse(Temp["TEMP"].ToString()));

            chart1.Series[1].Points.AddXY(Temp["TIME"].ToString().Substring(8, 4).Insert(2, ":"), int.Parse(Temp["HUMI"].ToString()));

            if (chart1.Series[0].Points.Count > 300)
            {
                chart1.Series[0].Points.RemoveAt(0);
                chart1.Series[1].Points.RemoveAt(0);
            }
        }

        private void button2_Click(object sender, EventArgs e)
        {
            RefreshToggle();
        }
    }
}
